A drier cooler reduces extracted meal temperature from 100-110°C down to roughly 40°C and brings moisture to 10-12%, making the meal safe to store and handle after solvent extraction. Without this stage, meal coming straight out of the extraction and desolventizing process would be too hot and too moist to bag, stack, or transport safely.
Why meal needs cooling before storage
Meal leaving the solvent extraction and desolventizing stages carries residual heat from the process and moisture levels unsuited to storage. Storing meal at 100°C-plus creates a real fire risk and accelerates thermal degradation of the product, while excess moisture invites spoilage and mold during storage. Bringing temperature down to around 40°C and moisture into the 10-12% range addresses both problems in one pass through the equipment.
How the cooling system works

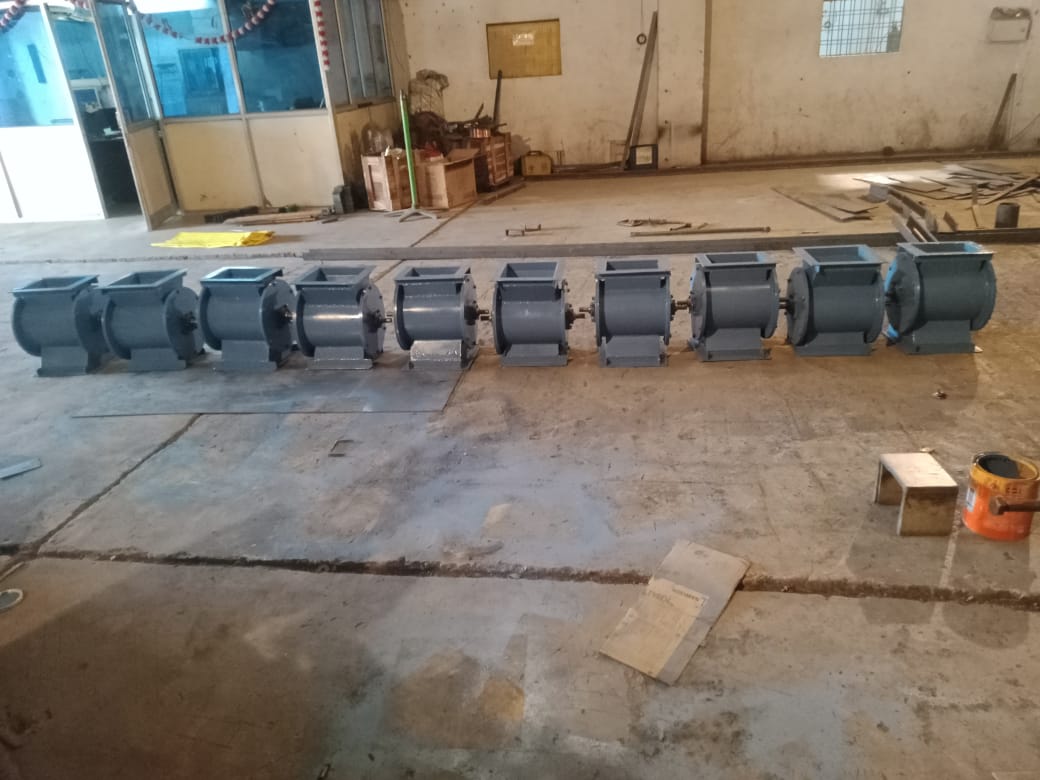

Counter-current or cross-flow air systems drive the heat transfer, pulling heat out of the meal as it moves through the machine. Integrated rotary valves handle material transfer between stages while maintaining the airlock needed to keep the process controlled — this is a detail that matters for consistent cooling, since an uncontrolled airflow path would create hot spots and uneven moisture reduction. Stainless steel construction stands up to the combination of heat, moisture, and continuous mechanical handling this stage involves.
Specifications
- Temperature reduction: 100-110°C to approximately 40°C
- Moisture control: 10-12% final moisture
- Cooling system: counter-current or cross-flow air
- Capacity range: 50-500 TPD
- Construction: stainless steel
Where this stage sits in the line
The drier cooler is the last mechanical stage before finished meal goes into storage or bagging, handling soybean, sunflower, rapeseed, and cottonseed meal alike. Getting this step wrong — undercooling or leaving moisture too high — creates storage and handling risk that shows up later as spoiled product or safety incidents, which is why uniform cooling that avoids hot spots is treated as a core design requirement rather than an afterthought.
Sizing and airflow configuration
Choosing between counter-current and cross-flow air design comes down to the specific heat and moisture load the plant's meal output presents, along with the physical layout available for the cooling equipment. Counter-current designs generally maximize heat transfer efficiency for a given footprint, which matters in plants where floor space is constrained. Capacity should be matched to the extraction plant's actual output volume rather than to a generic tonnage figure, since undersizing this stage creates a bottleneck at the very end of the line — meal that's already been through cracking, conditioning, flaking, expanding, and extraction, only to sit waiting for cooling capacity that isn't there.
