Flaker Machine Guide: Turning Seeds into Flakes for Extraction

A flaker machine turns conditioned or cracked seed into thin, uniform flakes — 0.25-0.35mm thick — increasing surface area 10-15 times over cracked seed for maximum oil extraction efficiency. Flake quality here has an outsized effect on how well the rest of the extraction line performs, since surface area is what determines how efficiently solvent can reach the oil.

Why flake thickness is the critical variable

Thicker flakes mean less surface area exposed to solvent, which slows extraction and leaves more residual oil in the meal. Thinner flakes extract faster and more completely, but push too thin and the flakes become fragile, generating fines that cause channeling problems in the extraction column. The 0.25-0.35mm range is where Pragya's flaker machines are set to balance extraction efficiency against flake durability, with hydraulic gap control giving precise, repeatable adjustment for different seed types.

Roll hardness and fines control

Flaker rolls run at HRC 60-65, precision-ground to maintain that hardness and dimensional accuracy under continuous abrasive duty. Softer or poorly maintained rolls wear unevenly and start producing inconsistent flake thickness, which shows up downstream as more fines and less predictable extraction rates. Advanced roll cooling keeps operating temperature stable during continuous runs, and the combination of hard rolls plus cooling is what keeps fines generation under 5% — below the threshold that starts causing channeling in the extraction column.

Specifications

• Roll sizes: 600×1200mm, 800×1500mm, custom sizes available
• Flake thickness: 0.25-0.35mm (hydraulic adjustment)
• Roll hardness: HRC 60-65 precision-ground steel
• Surface area increase: 10-15x over cracked seed
• Capacity range: 50-500 TPD

What good flaking sets up downstream

A flaker producing consistent, thin flakes with minimal fines gives the extraction column what it needs to run efficiently — even solvent penetration, no channeling, and predictable residual oil in the finished meal. That's true whether the plant is running soybean, sunflower, rapeseed, cottonseed, or groundnut, since surface area is the same lever regardless of seed type. Custom roll sizes let the flaker be matched to a plant's actual throughput target rather than forcing a standard size onto a non-standard capacity requirement.

Matching roll size to plant throughput

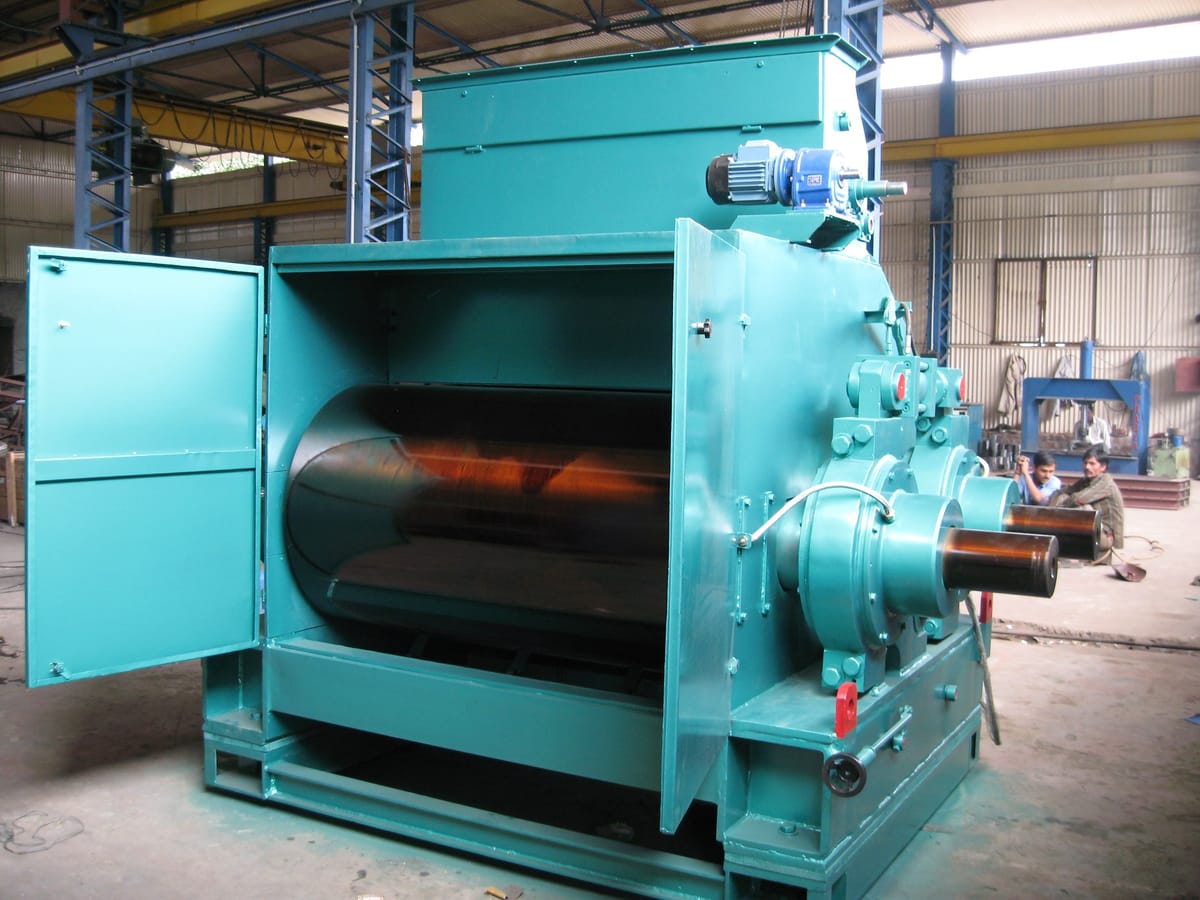

The 600×1200mm and 800×1500mm standard roll sizes cover most mid-to-large solvent extraction plants, with custom sizes available for operations outside that range. Roll size determines how much material can pass through per unit time at a given flake thickness, so undersizing the flaker relative to upstream cracking and conditioning capacity turns it into the bottleneck for the whole line — no amount of downstream extraction capacity compensates for a flaker that can't keep pace with the seed being prepared for it. Since flake thickness and roll size are specified together rather than independently, it's worth discussing actual throughput targets with the equipment supplier before settling on a roll size rather than defaulting to whichever size a competitor's plant happens to run.
