Steam Radiator and Heat Exchanger for Oil Seed Processing Plants

Steam radiators and heat exchangers supply the process heat that solvent extraction plants rely on throughout the line, from seed conditioning to solvent vaporization. Pragya builds two configurations for this — fin tube radiators for air and space heating, and shell-and-tube exchangers for higher-pressure process applications — and which one a plant needs depends on where in the process the heat is being applied.

Two designs for two jobs

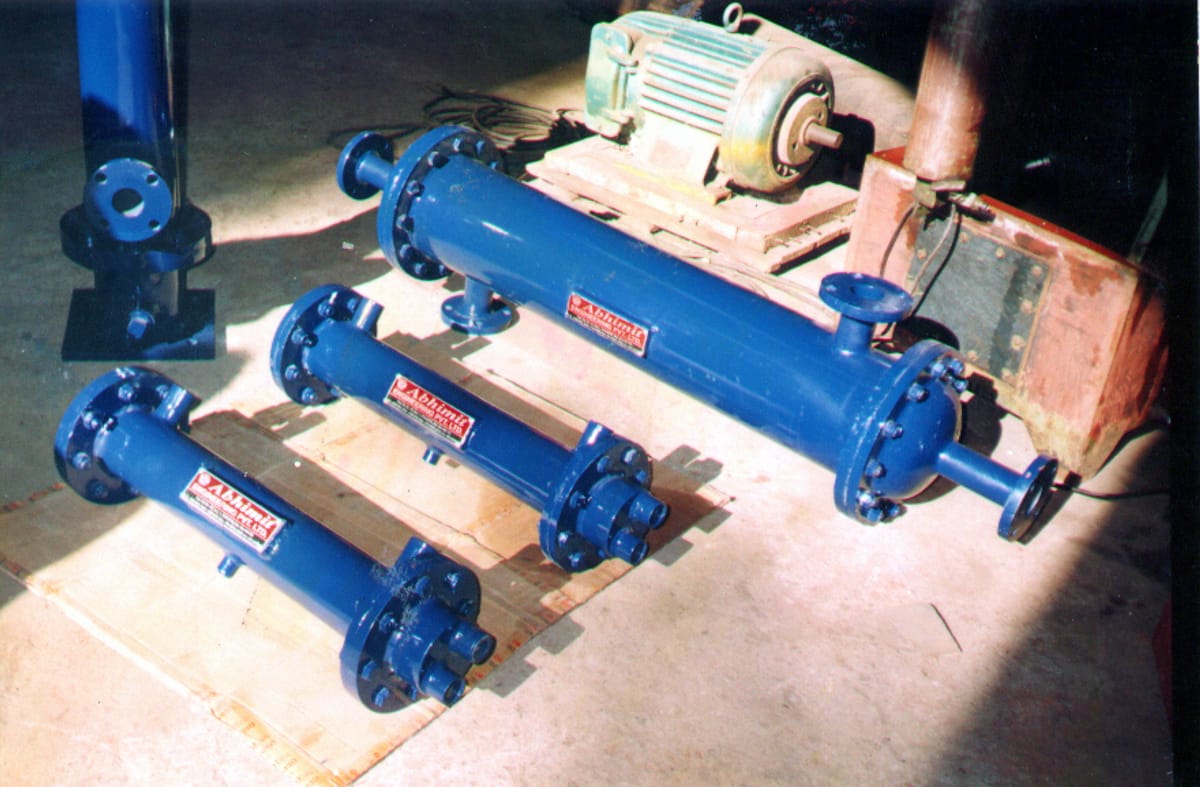

Fin tube radiators use extended surface area to heat air or space efficiently, which suits applications like general area heating within the plant. Shell-and-tube exchangers, rated for higher pressure service up to 10-plus bar, handle the more demanding process-side heat transfer duties — situations where heat needs to move between process fluids or vapors under pressure rather than simply warming ambient air.

Why materials and pressure rating matter here

Solvent extraction plants run heat exchange equipment in environments where corrosion resistance isn't optional — moisture, process vapors, and continuous thermal cycling will degrade the wrong material choice quickly. Stainless steel and carbon steel options let the equipment be matched to the specific corrosivity of where it's installed, while pressure ratings up to 10-plus bar and temperature capability to 200°C cover the range these plants typically operate within.

Specifications

• Design types: fin tube radiators, shell and tube exchangers
• Pressure rating: 3-10+ bar (shell and tube)
• Temperature range: up to 200°C
• Materials: stainless steel, carbon steel
• Configuration: customized to plant requirements

Where these are applied in the plant

Seed heating and conditioning, solvent heating and vaporization, and general process temperature maintenance are the three applications these units cover across a solvent extraction plant. Because configuration is customized rather than off-the-shelf, the right combination of design type, pressure rating, and material comes down to matching the equipment to the specific heat load and corrosivity of the application it's serving, not defaulting to one standard spec across every point in the line.

Maintenance access and longevity

Easy maintenance access is a design consideration that's easy to underweight when specifying heat exchange equipment, but it directly affects how well the unit performs over its service life. Fouling and scale buildup on heat transfer surfaces reduce efficiency over time regardless of design type, and a unit that's difficult to open up for cleaning tends to get serviced less often than it should — which shows up eventually as declining heat transfer performance and higher energy consumption for the same thermal output. Specifying accessible cleaning points up front, alongside the right pressure rating and material for the application, is what keeps these units performing at their rated efficiency years into operation rather than degrading quietly until a shutdown forces the issue.
