Fin Tube Machine: How Fin Tubes Are Manufactured

A fin tube machine manufactures spirally crimped finned tubes by winding a fin strip around a base tube under tension and crimping it to form interlocking ridges, creating a secure mechanical bond between fin and tube without welding.

How it works

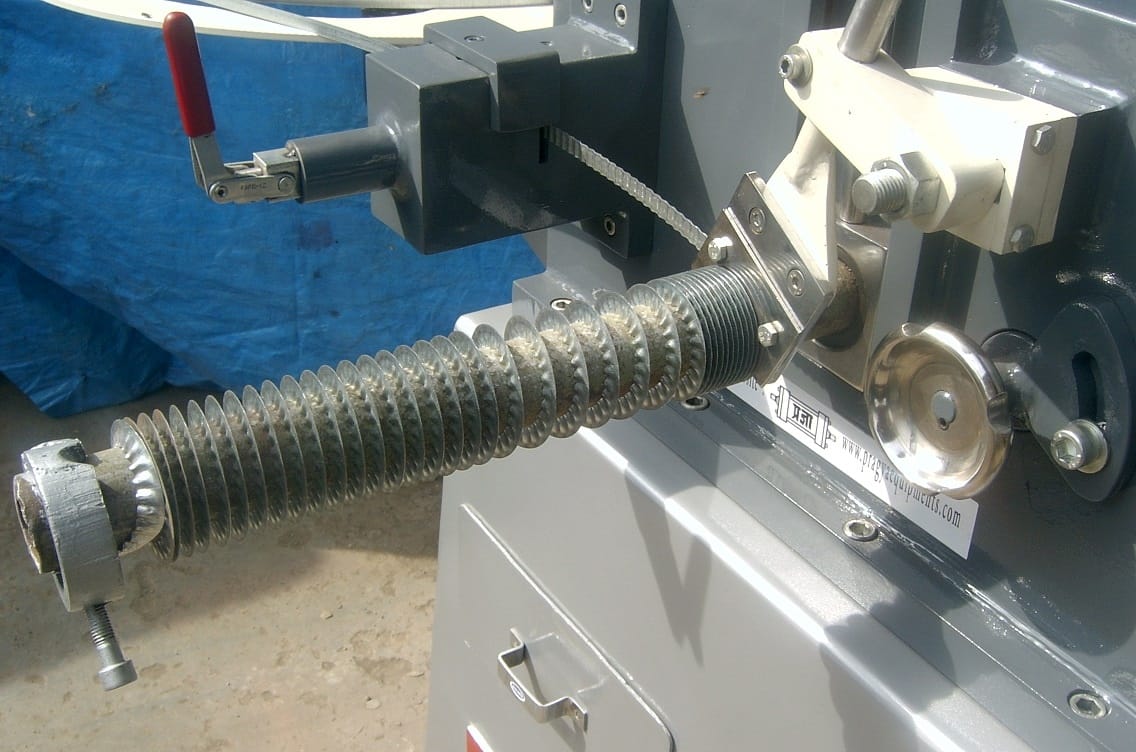

The base tube feeds through the machine while a continuous fin strip is wound around it in a spiral at a precise angle. As the strip is wound, the machine crimps it against the tube surface, forming interlocking ridges that lock the fin mechanically to the tube. This mechanical bond — rather than a welded one — is what gives the finished tube its heat transfer performance, since a tight, continuous contact between fin and tube base is what actually conducts heat efficiently, and the interlocking crimp keeps that contact intact under thermal cycling and vibration in service.

Spirally crimped process

• Winding and crimping: the fin strip is fed and wound around the base tube at a precise angle; crimping creates interlocking ridges between fin and tube for a strong mechanical bond
• PLC control: adjustable fin height, pitch, and spacing allow consistent quality and let the machine produce tubes tuned to different thermal performance requirements

Specifications (PTF 40/70/100 models)

• Tube diameter: 12 to 50 mm
• Fin height: 5 to 20 mm
• Speed: up to 25 m/min
• Power: 15-30 kW
• Control: PLC with digital interface

Key features and applications

Precise fin forming for consistent quality, adjustable fin height and spacing, PLC-controlled automated operation, and integrated tube feeding and cutting round out the machine's core capabilities. These machines are used for heat exchanger manufacturing, boiler and condenser production, HVAC equipment fabrication, and power generation cooling systems — anywhere finned tubes are produced in volume rather than sourced pre-made.

Fin tube machine vs. finished fin tubes

If your operation is producing finned tubes as a manufactured product — in volume, to your own specifications on diameter, fin height, and pitch — a fin tube machine is the production equipment that makes that possible in-house rather than outsourcing. If instead you need finished fin tubes as a component for building something else, like a heat exchanger or boiler, buying ready-made fin tubes (available in carbon steel, stainless, copper, and aluminum) is the more direct path. The PLC control on these machines is what makes producing multiple fin specifications on one line practical, since fin height and spacing can be reset digitally between production runs rather than requiring mechanical retooling.
